DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle

DJI

$829.00  Was $849.00

This product is currently sold out

  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle
  • DJI Goggles Immersive First-Person View FPV HD Headset Drone VR viewer controlle

Immersive FPV, a pair of 1920×1080 HD screens and a head tracking feature, enabling you to look at the world from above.

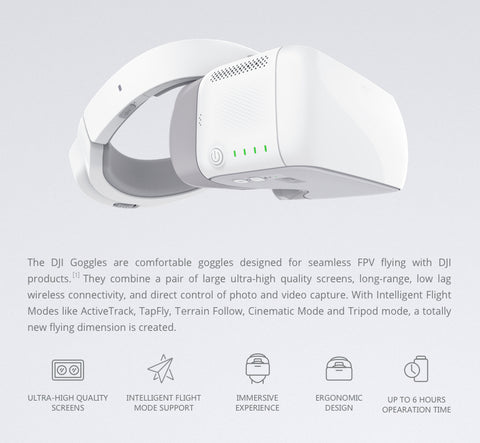

The DJI Goggles are comfortable goggles designed for seamless FPV flying with DJI products. They combine a pair of large ultra-high quality screens, long-range, low lag wireless connectivity, and direct control of photo and video capture. With Intelligent Flight Modes like ActiveTrack, TapFly, Terrain Follow, Cinematic Mode and Tripod mode, a totally new flying dimension is created.

  • Ultra-High quality screen
  • Intelligent  flight mode support
  • Immersive experience
  • Ergonomic design
  • Up to 6 hours operation time

LOW LAG TRANSMISSION

DJI Goggles are able to offer both 720p/60fps and close range 1080p/30fps viewing [2] with an extremely low latency of just 110ms. [3] Through DJI’s OcuSync wireless transmission system, up to four devices can be connected to the Mavic Pro simultaneously. [4] Antennas built into the headband ensure 360° of coverage, offering a reliable connection even if the aircraft is flying behind you. [5] Share the fun of immersive flying with friends by giving them a bird’s eye view of the world as you pilot their experience.

HIGH RESOLUTION

Typical “2K” screens inside the goggles are split into two 1280x1440 sections, one for each eye. When viewing a 16:9 image, some sections are further cut off, leaving only a quarter of the available pixels. DJI Goggles have two 1920x1080 screens providing more than twice the amount of pixels of a typical 2K single screen.

NO LATTICING

Each screen packs its pixels together tightly so you see a clean, cohesive image with no latticing.

OPTICAL DESIGN

DJI Goggles use a beam splitter to display an image in front of each eye, as well as polarisation to prevent any image overlap. This allows it to create genuineFull HD 1920x1080 resolution per eye. When used with the large aperture aspheric lens, an 85° field of view per eye is created for maximum immersion.

HEAD TRACKING [1]

Your head movements control both aircraft yaw and camera tilt in Head Tracking Flight mode as with remote controller sticks. All you need to do is turn left or right to yaw left or right, and straighten your head to stop turning. In Head Tracking Gimbal mode only the gimbal will move without affecting the view.

TOUCHPAD & REMOTE CONTROLLER [1]





Access to key intelligent features through a touchpad integrated into the DJI Goggles or 5D button on the Mavic Pro controller makes navigating the internal menu system easy and intuitive.

INTELLIGENT FLIGHT [1]

DJI Goggles are a perfect pair with DJI's new Intelligent Flight Mode: Fixed-Wing Mode. In this mode, the aircraft doesn’t turn left or right but instead flies forward with enough rotational movement for realistic flight simulation. Combined with Head Tracking Mode, you can use your head to control the Mavic Pro for a fully realised flight experience.An AR trajectory prediction feature in Fixed-Wing Mode makes using this mode in complex environments safer. Other Intelligent Flight Modes include Terrain Follow, ActiveTrack, TapFly, Cinematic Mode and Tripod Mode.

COMFORTABLE AND FLEXIBLE

A unique solid headband design balances and spreads the weight of DJI Goggles around the head evenly, minimising pressure on the face and keeping them comfortable to wear for hours. People who wear glasses are also able to wear them comfortably.The screen portion of DJI Goggles can be flipped up to glimpse the real world, or detached entirely for easy storage and portability.

  • MICRO USB INPUT

    Connect compatible Phantom 4 series and Inspire 2 using the USB port to get access to tracking functions and head tracking. [1] It is also used for firmware upgrades.

  • Micro SD CARD

    Download files from the aircraft to the goggle’s onboard SD card for a backup, or view video files you have captured. [6]

  • HDMI INPUT

    Watch camera feeds from a Phantom 4 series or Inspire drones [1], or plug in a video device to watch films or play games.

  • AUDIO

    Plug headphones into the headphone jack or use the onboard speakers to listen to audio on videos being played through the HDMI cable.

  • Works with but not limited to

          Phantom 4, Phantom 4 Pro, Phantom 4 Advanced, Inspire 2, Mavic pro and Spark



SPECIFICATION

Weight Goggles: 495 g
Headband: 500 g
Dimensions Goggles: 195×155×110 mm
Headband(Folded): 255×205×92 mm
FOV 85° (single screen)
Screen Size 5 inch×2
Interpupillary Distance Range 58 – 70 mm
Refresh rate 60 Hz
Screen Resolution 3840×1080 (single screen: 1920×1080)
Operating Frequency 2.4 GHz
Max.Transmission Distance Same as the aircraft connected
Video Downlink Resolution 1080p 30, 720p 60, 720p 30
Video Downlink Latency at least
(Near field and free of interference)
110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Phantom 4 Pro/Advanced series, 720p60, video format: 720p60/720p120)
167 ms (Phantom 4, 720p30, video format: 720p60)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
Battery Capacity 9440 mAh
Battery Energy 35.44 Wh
Max Operating Time 6 hrs
Operating Temperature Range 32°F (0°C) - 104°F (40°C)
I/O Interface Micro USB, 3.5mm audio jack,
HDMI type-D, Micro SD card slot
HDMI Supported HDMI 1.4b, HDCP 1.4
Sensors Gyroscope, Accelerometer, Proximity sensor
Charger Input: 100-240VAC, 50/60 Hz. 0.5A
Output: 5V,3A ; 9V,2A;12V,1.5A
