DHS Z-Wave Dimmer Plug-In AC power adaptor with switch

DHS

$99.00

This product is currently sold out

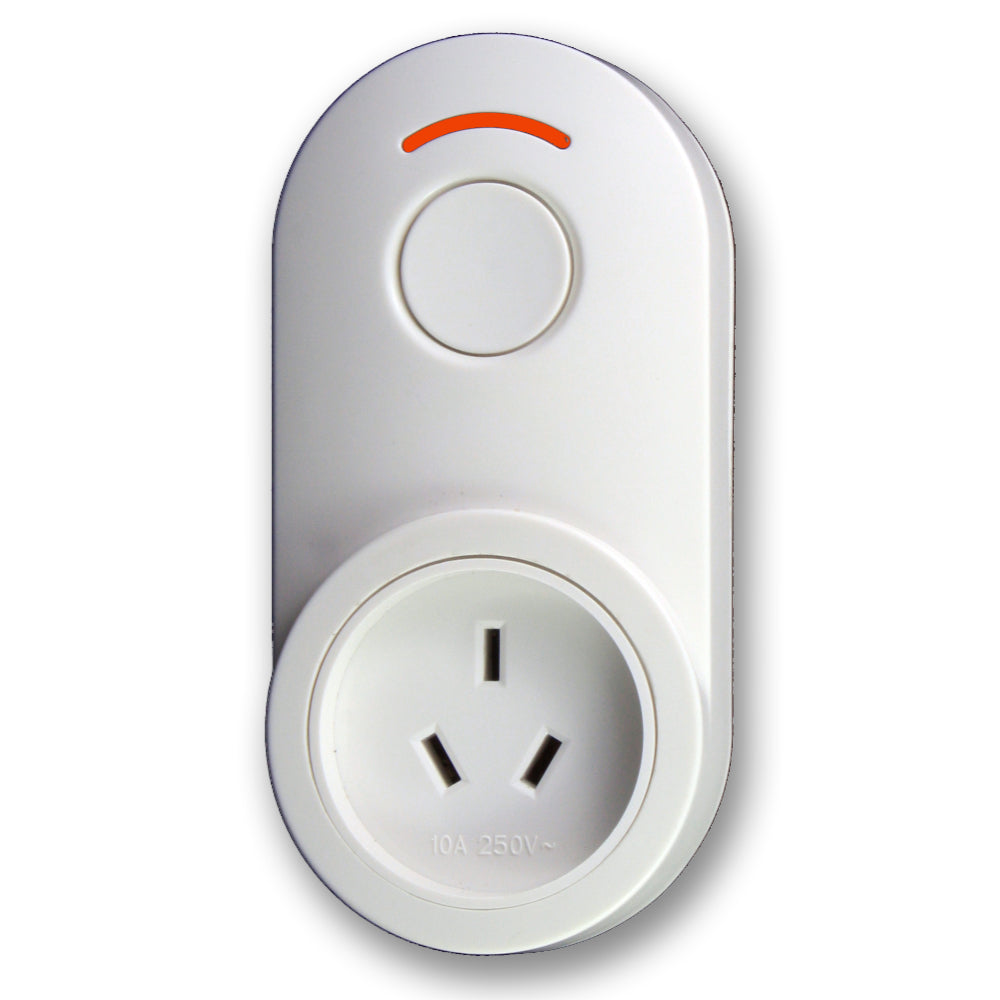

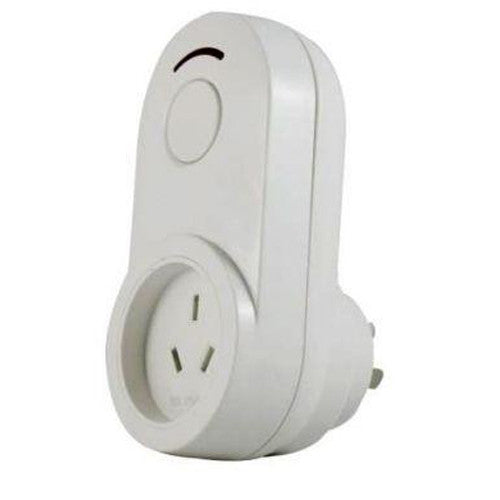

 The DHS Z-Wave Plug-In Dimmer (manufactured by Aotec) is an electrical dimmer designed for use in smart homes and offices.

  • Control ON/OFF function and degree of illumination manually or remotely with Z-Wave controllers
  • Compatible with all Z-Wave networks
  • Acts as a repeater, expanding the range of your Z-Wave network
  • Plugs into standard wall sockets



Product Details

The DHS Z-Wave Plug-In Dimmer is a smart Z-Wave controller which allows you to remotely adjust the state of your lighting appliances between ON and OFF and to adjust their degree of illumination using a compatible Z-Wave controller. It doesn't require any new wiring as it simply plugs into standard wall sockets.

The DHS Z-Wave Plug-In Dimmer is also capable of acting as a repeater in a Z-Wave network effectively expanding its functional range.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

  • Vera 3/Lite
  • Raspberry PI with RaZberry Card
  • HomeSeer
  • Fibaro Home Controller 2/Lite
  • DHS Z-Wave Universal Remote Controller
  • DHS Z-Wave Mini Remote Controller

 Please note: Check the load compatibility table and maximum load for the product before installing or operating.



Product Support



Installation:

First ensure that the target wall socket is switched off.  The Z-wave Plug-In Dimmer should be plugged directly into the wall socket and then the lamp or lighting circuit to be controlled should be plugged into the socket on the Z-Wave Plug-In Dimmer. Apply power to the Z-Wave Plug-In Dimmer by switching the wall socket on.

Manual operations: The product may now be operated by use of the provided round button on the device. A single press will turn the output on to maximum. A subsequent single momentary press will turn off the device. A continuous press of the button will dim up or dim down the output load depending on the previous dimming direction. Releasing the button will stop the dimming at the current level. The lowest level of illumination is 25%.

Z-Wave operations: For Z-wave inclusion/exclusion/association turn your primary controller to inclusion/exclusion/association mode and then push the button on the Z-Wave Plug-In Dimmer after connecting the load and switching on the power. The product works as a standard Z-wave multilevel switch, routing slave device.



Technical Specifications

RF Protocol
Z‐Wave (Multilevel Commmand Class)
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐wave device type
Z-Wave multiple level dimmer, routing slave
Power
AC 230V / 50Hz
Operation Range
Up to 30m indoors with no obstacles
Application
Indoor use only
Operation temperature
0 ~ 55 °C
Max/Min Loading 300/50W
Dimming Interval
Safety minimum set up at 25%
Dimming Type
Universal, compatible with electronic transformers (Travelling Edge and Leading Edge). Not compatible with iron core transformers.
Storage temperature
‐10 ~ 80 °C
Weight
330g
Housing
ABS
Complience
CE, C-tick, Electrical Safety
Load Compatibility
Incandescent globes, High Voltage Halogens, Low Voltage Halogens with electronic transformers(Trailing Edge or Leading Edge only)
