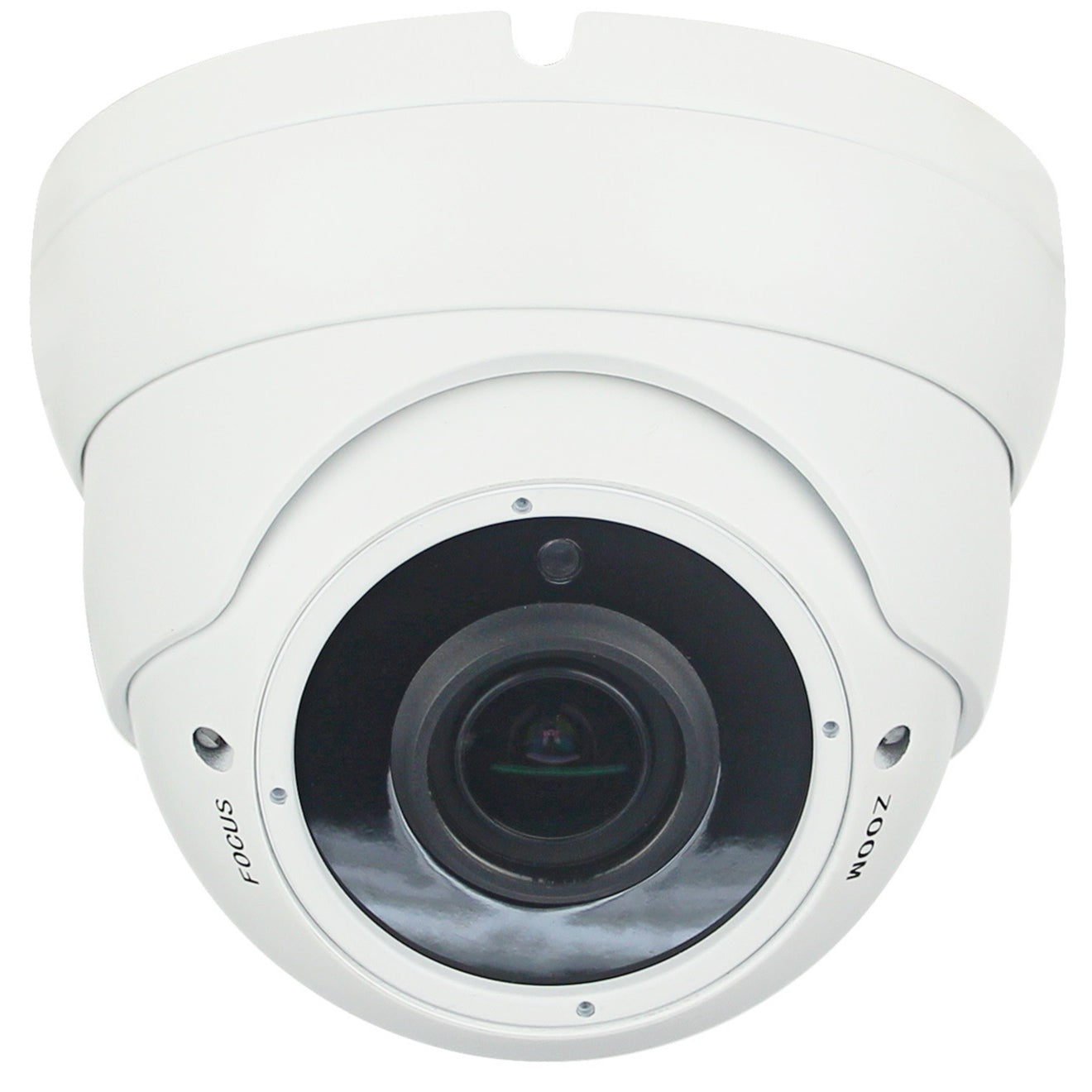

DigiGuard 5MP TVi GIMBAL DOME CAMERA
- 5MP HD-TVI Video (5MP TVI & AHD, 4MP CVI, CVBS)
- 4 in 1 Technology (TVI, CVI, AHD, Analog signals)
- 24pcs Smart IR LEDs for distance up to 40M
- Vari-focal 2.8~12mm adjustable lens
- 3 Axis, Weather Proof IP66, DC12V only
- Up to 300m via Coaxial Cable or TVI Cat-5e Balun
- Warranty- 24 months
| DESCRIPTION | PAL |
| Imaging Device |
1/2.9" SONY 6MP CMOS sensor |
| Effective Pixels |
5MP (2592 x 1944) |
| Scanning System | Progressive Scan |
| Synchronization | Internal, Negative Sync |
| Horizontal Resolution | TVi 5M / AHD 5M / CVI 4M / CVBS |
| S/N Ratio | More than 50dB (AGC off) |
| Min. illumination | 0.001 Lux (Colour) / F1.2 |
| IRIS Adjustment | Auto |
| LENS | 2.8 ~ 12 Manual Zoom Lens |
| Electronic Shutter | Auto /FLK 1/25s ~ 1/50,000s, 1/30s ~ 1/60,000s |
| MANUAL (X2~X512) | |
| IR LEDs | 24 pcs LEDs |
| Gama Characteristic | 0.45 |
| IR Distance | 30 Meters |
| IR Status |
Under 10 Lux by CDS |
| Auto Gain Control | Auto |
| Day & Night | Auto |
| Privacy Masking | On/Off (Programmable) |
| DNR | LEVEL (0~100) Adjustment |
| Digital Zoom | 1.0x - 8.0x |
| SENS-UP | OFF / x2 - x8 |
| MOTION | ON / OFF |
| Digital Effect | OFF / V-FLIP / MIRROR / ROTATE |
| Dimension (mm) | 120 x 93 (H) |
| Weight (g) | 800 |
| Input Voltage | DC 12V |
| Power Consumption | IR OFF: 210mA / IR ON: 700mA |
| Operating Temp / Hum. | -10ºC~ +50ºC / 30% ~ 80% RH |
| Stoprage Temp / Hum. | -20ºC ~ +60ºC / 20% ~ 90% RH |
* Sensor (CMOS) 1/2.9" SONY 6MP CMOS sensor * Auto Gain Control (AGC) Built-in auto gain control (AGC) circuit. The colour camera can get high definition picture in low Lux condition. * Scanning Mode NTSC or PAL mode
* Auto Electronic Shutter (AES) Built-in auto electronic shutter function. The colour camera’s AES speed can reach 1/100,000s.
*Gama Characteristic Camera Gama characteristic is 0.45.
*Switch the output signal by OSD button
Press “left” key after 5 seconds then release : CVBS
Press “right” key after 5 seconds then release : TVI
Press “up” key after 5 seconds then release : AHD
Press “down” key after 5 seconds then release : CVI
