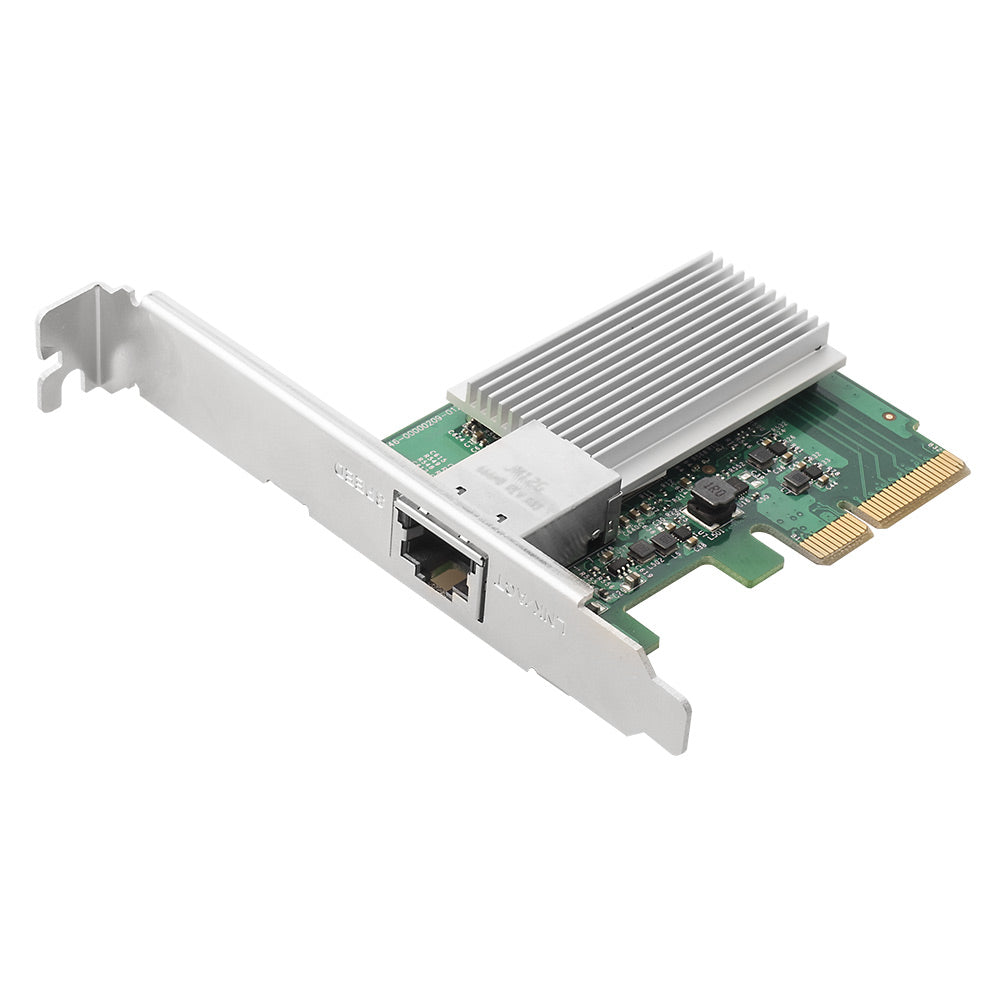

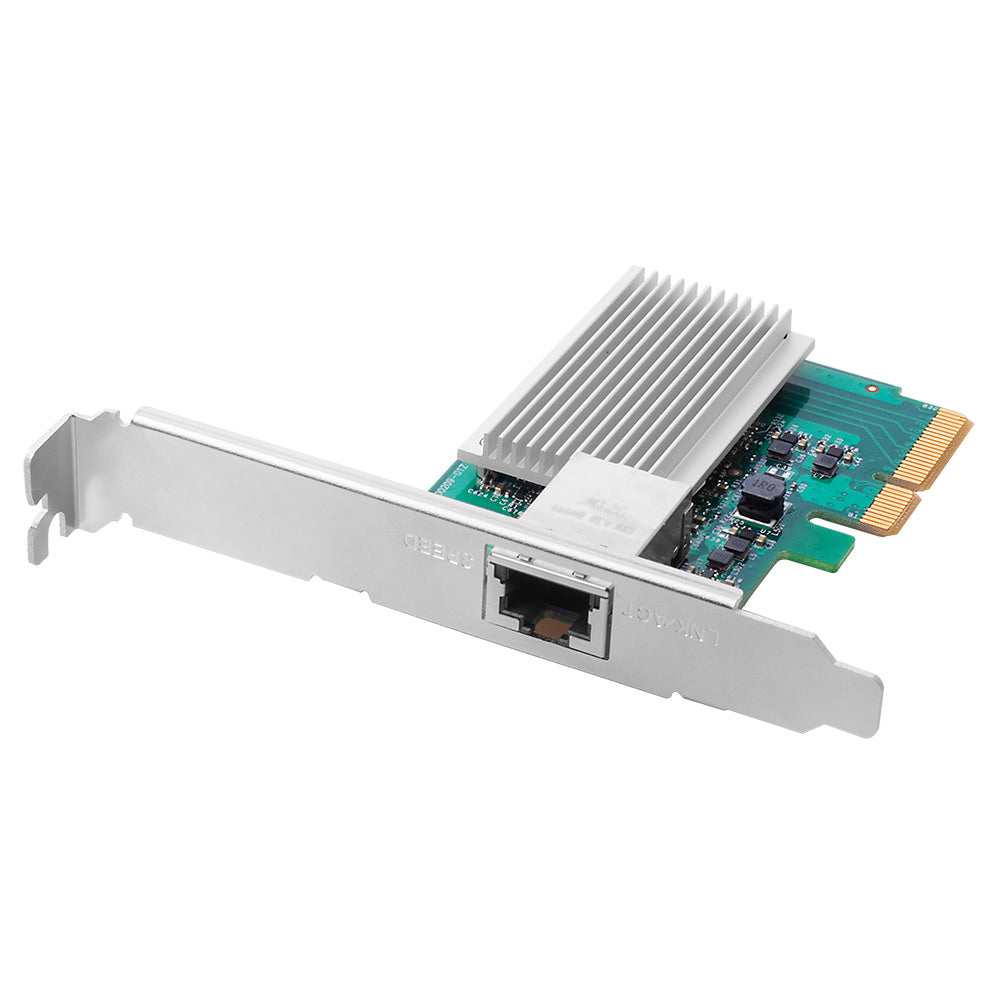

Edimax 10GbE PCI Express Network Card

Edimax

$169.00

This product is currently sold out

  • Edimax 10GbE PCI Express Network Card
  • Edimax 10GbE PCI Express Network Card
  • Edimax 10GbE PCI Express Network Card
  • Edimax 10GbE PCI Express Network Card

The EN-9320TX-E is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.

The EN-9320TX-E is an ideal selection to upgrade your server or workstation as the high-performance, low-power consumption and better-quality solution to complement the requirements of low latency, high bandwidth, high-throughput and cost-effective Gigabit Ethernet Adapter.

10GbE Superior Network Speed

Equipped with a 10 Gigabit RJ45 interface, the EN-9320TX-E can provide 10 times better performance than existing Gigabit transmissions.​

Advanced Features & Security
The EN-9320TX-E features 802.1Q Virtual LAN (VLAN) tagging for Ethernet frames providing network management with a flexible and more secure environment. Moreover the card supports advanced features for best performance such as 16K Jumbo Frame and IEEE 802.3x Flow Control.​

Cost Effective and Easy Migration 10G Adapter
The Cost-effective solution of 10Gbps high-speed adapter on 10 Gigabit network connection – offering full compatibility to 10/5/2.5/1Gbps and 100Mbps networking standards and existing copper network.

Key Features

  • PCI Express rev.2.0 specification x 4 interface
  • 10 Gigabit throughput with 100-meter UTP cable
  • Backward compatible with 1000Bast-T, 100 Base-TX network
  • 16K jumbo frames
  • IP, TCP, UDP checksum offloading
  • Reduced CPU utilization and improved though
  • Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

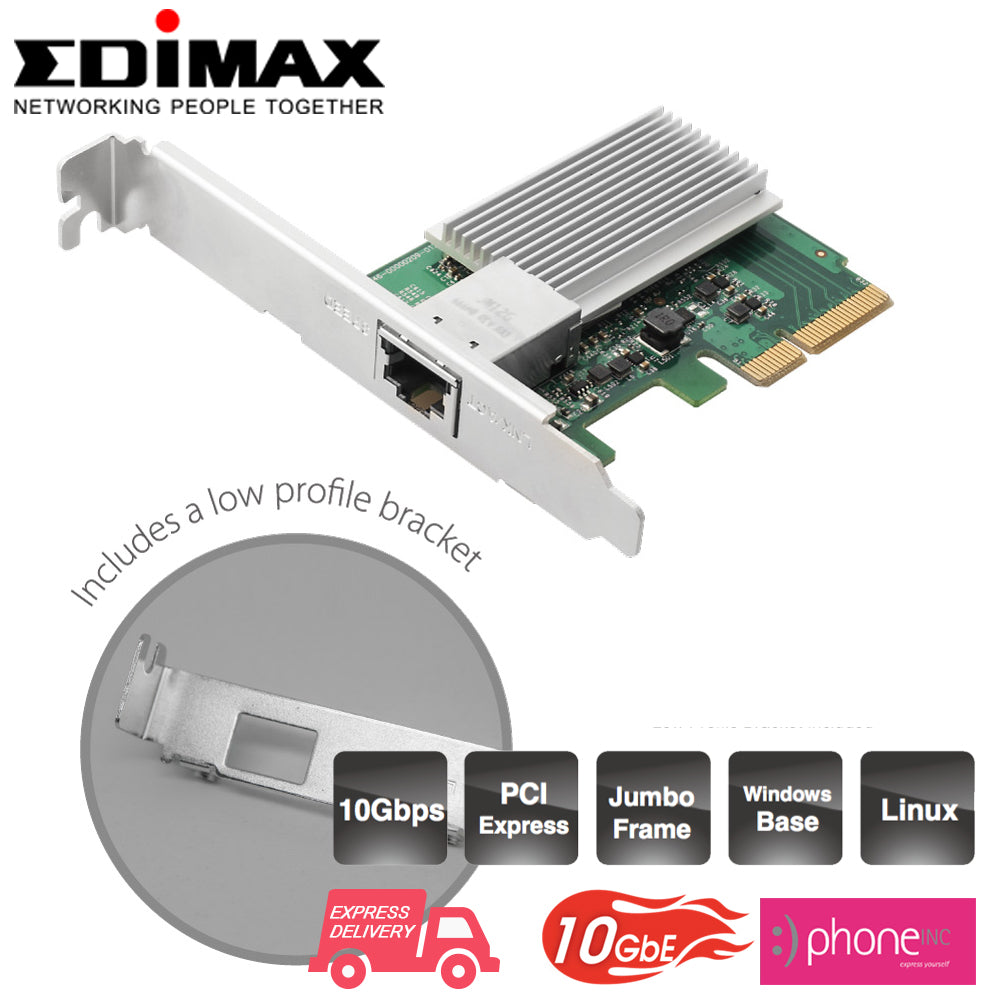

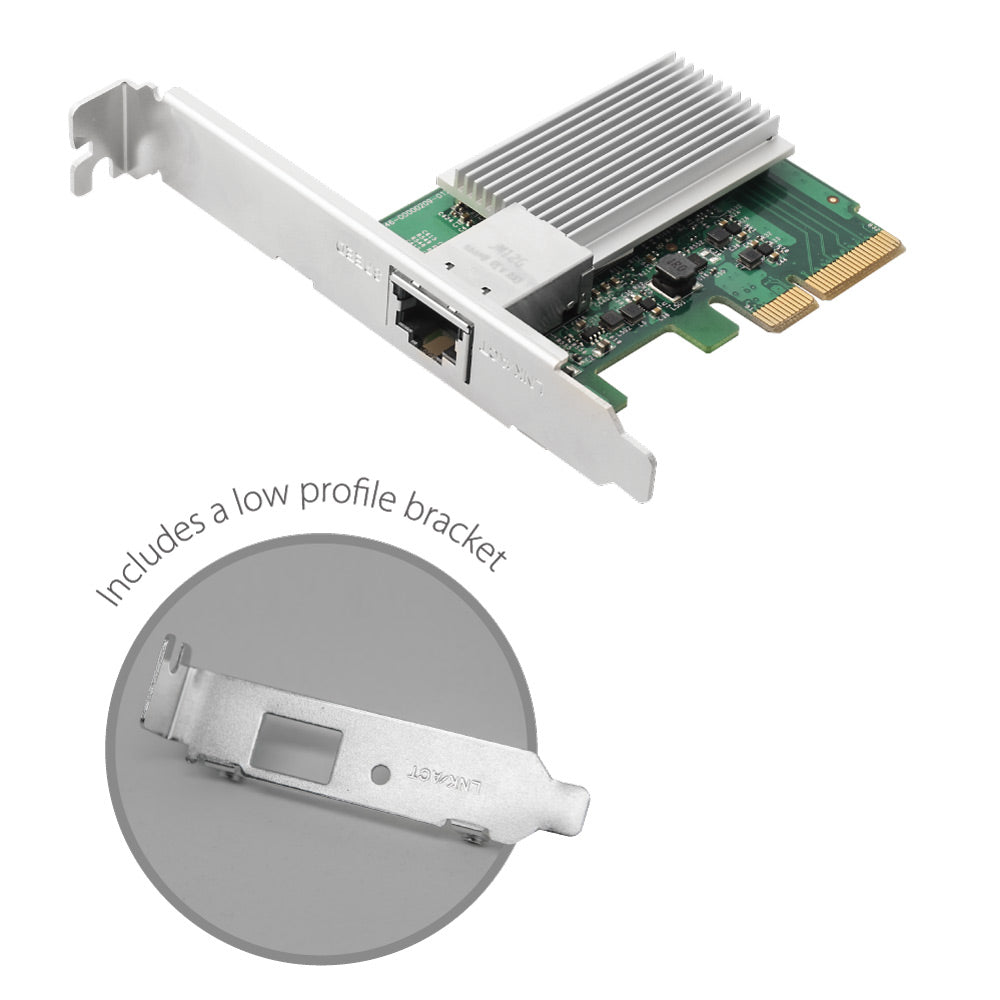

  • Low profile bracket included

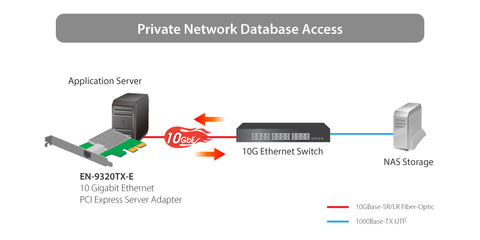

Application Diagrams


Other 10GbE Products

Web Smart Switch XGS-5008

SFP + PCI Express Adapter EN-9320SFP+

SFP + Module MG-10G Series

SPECS
Hardware

Attachment interface

  • PCI Express Rev. 2.0 Specification x4 Interface

Media Interface

  • RJ-45 Connector

Jumbo Frame

  • 16K Bytes

LED Indicators

  • LNK / ACT Per Port

Typical Power Consumption

  • 4 Walls

Software
OS Compatibility

  • Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016
  • Windows 10, Windows 8.1, Windows 7 (32/64-bit)
  • Linux 4.x, 3.x, Linux 2.6.x (32/64-bit)
  • Mac OS X 10.10.X (Yosemite)
  • Mac OS X 10.11.x (EL Captain)
  • MAC OS Sierra (10.12.x)
  • VMware ESXi 6.0, 5.5, 5.1
  • Microsoft Hyper-V
  • Linux KVM
  • Oracle VirtualBox ​

Environment
Temperature

  • Operating: 0 - 50 ℃
  • Storage: -40 - 85℃

Humidity (Non-condensing)

  • Operating: 5 - 95%
  • Storage: 5 - 95%

Physical Characteristic
Dimensions (WxD)

  • 82 x 62mm

Weight

  • 45g

Standards Compliance
Standards and Protocols

  • IEEE 802.3ae: 10Gbps Ethernet
  • IEEE 802.3x: Flow Control and Back Pressure
  • IEEE 802.2ad: Link Aggregation
  • IEEE 802.1Q VLAN support
  • RFC2819 RMON MIB statistics

Certifications

  • FCC, CE
