The Vision Z-Wave Plus Recessed Door/Window Sensor is a small, wireless device that detects the opening and closing of your door/window.

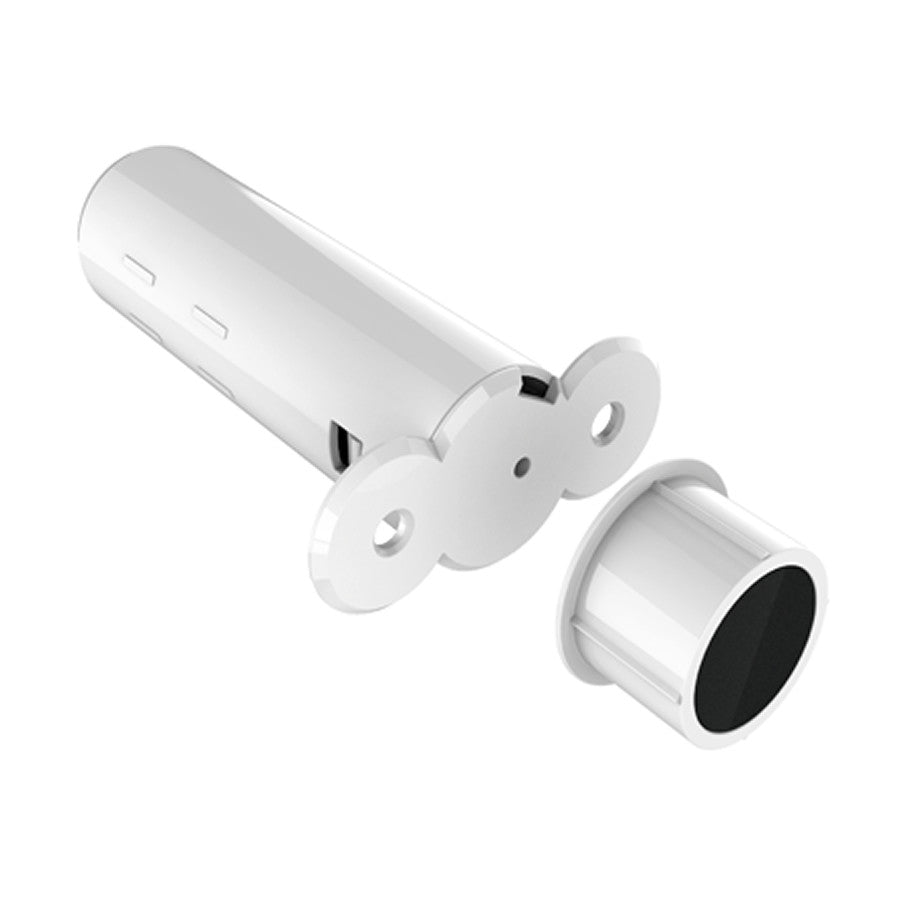

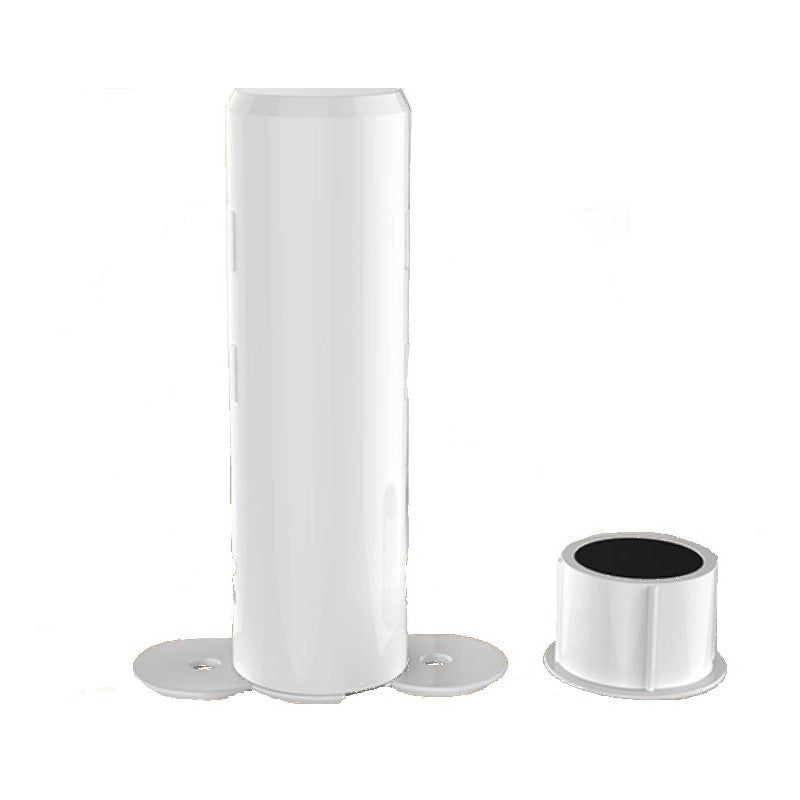

It has two pieces: a larger part (transmitter), and a smaller part (magnet), which will be inserted into your door and door frame, making the sensor almost invisible. Visible parts come in two colours - white and brown in one package.  It works similarly to Door/Window sensors, but has to be installed inside a door frame to keep it hidden from the view. They are more difficult to mount up and require to drill holes for installation.

The Vision Z-Wave Plus Recessed Door/Window Sensor uses a replaceable lithium battery and should last 2 years under normal usage.

Features

• Designed to be concealed within a door/window frame
• Completely wireless
• Long battery life with low power alarm notification
• Tamper detection

SPECS
RF Protocol

• Z‐Wave Plus

RF Frequency

• 921.42Mhz ‐ AU/NZ approved RF for Z‐Wave

Z‐Wave Device Type

• Z-Wave binary sensor

Application

• Indoor use only

Colour

• White

Battery

• CR2 3V

Operation Temperature

• 0 ~ 50 °C

Dimensions

• (L x W x H) 65mm x 19mm x 19mm

Compliance

• RoHS 2011/65/EU, LVD 2006/95/EU, EMC 2004/108
