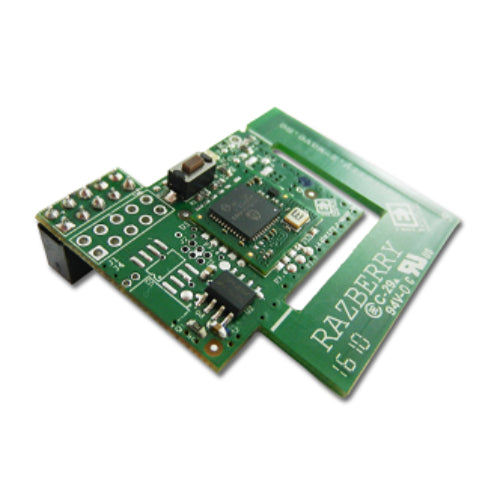

The Z-Wave.me Z-Wave RaZberry Card 2 is a tiny daughter card designed for the Raspberry PI which allows it to function as a Z-Wave gateway.
- Plugs into the Raspberry PI GPIO interface
- Z-Wave Plus certified
- Includes Z-Way AJAX-based demo user interface for easy access to Z-Wave functions
- Includes all firmware drivers and Z-Wave stack
- The optimized antenna provides greater range than the earlier model
Product Details
The Z-Wave.me Z-Wave RaZberry Card 2 adds all the components needed to turn a Raspberry PI board into a fully operational and inexpensive Z-Wave gateway. Designed to sit on top of the GPIO connector (not blocking the USB boards), it is powered by the Raspberry PI board with 3.3V and communicates using TTL signals (RX/TX).

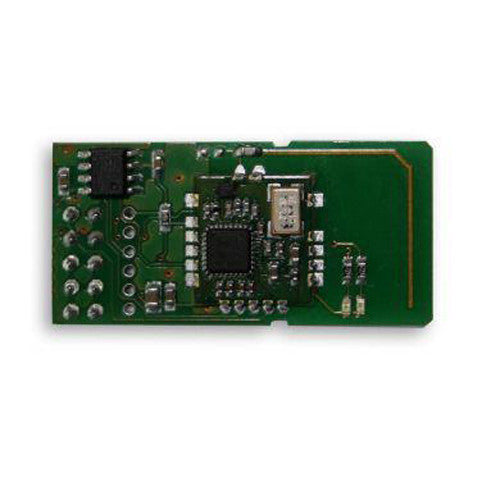

It hosts a Sigma Designs ZM5202 Z-Wave transceiver module, an external 32 K SPI flash for network data and a PCBA antenna. (Beside the PCBA antenna there is also an option to solder a whip antenna and an IPEX connector.)
Additionally, two LEDs are used to indicate the status of the Z-Wave controller chip.
The Z-Wave.me Z-Wave RaZberry Card 2 also contains Z-Wave low-level firmware that runs on the transceiver and Z-Way – the first certified Z-Wave communication stack which handles all Z-Wave network communication, a Javascript automation engine and a built-in web server. You can read more about the Z-Wave.me Z-Wave RaZberry Card 2's firmware on the z-wave.me website.
This device is intended for programmers who want to write their own user interface and applications however an Installer UI and Ajax web demo are available for download to get you started. You can find them on the z-wave.me website. A basic but functional mobile app is also available for Android and Apple devices.
This product is compatible with the following devices:
- Raspberry PI 1 B
- Raspberry PI 1 B+
- Raspberry PI 2
- Raspberry PI 3
The Raspberry PI is not included with this device.
Technical Specifications
|
RF Protocol
|
Z‐Wave
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐Wave device type
|
Z-Wave API
|
|
Power
|
18 mA @ 3.3 V
|
|
Operation Range
|
Up to 40m indoors (with no obstacles)
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0 ~ 55 °C
|
|
Storage temperature
|
‐10 ~ 80 °C
|
|
Weight
|
30g
|
|
Dimensions
|
45mm x 45mm x 15mm
|
|
Housing
|
N/A
|
|
Compliance
|
EU standards EN 55022, EN 61000
|
