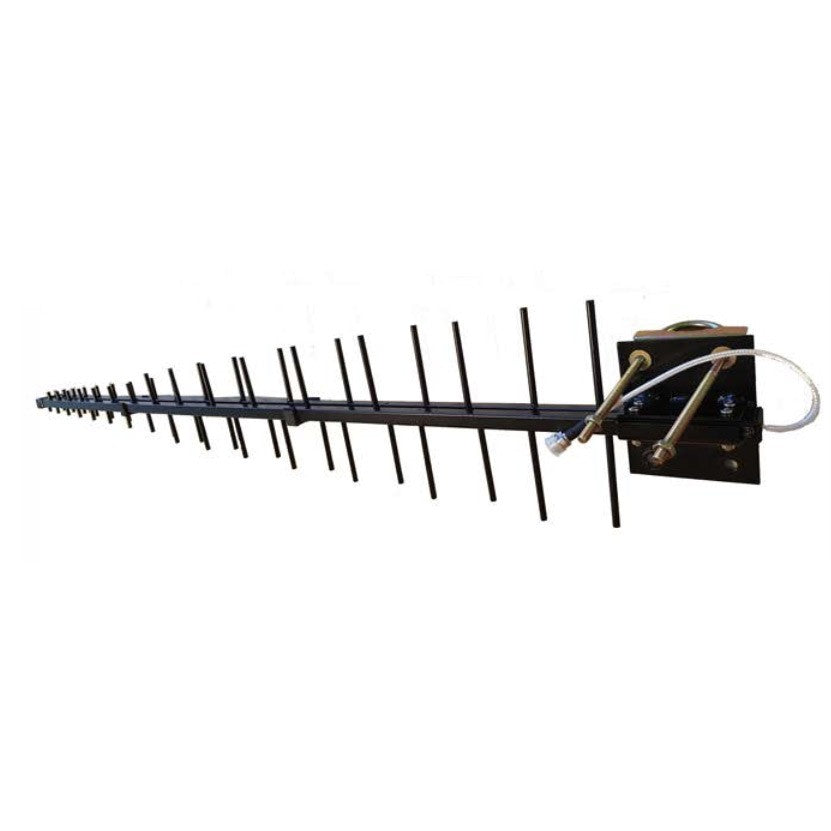

BLACKHAWK LPDA Outdoor mobile signal NextG 3G 4G 4GX external antenna 698-2700MH

Blackhawk

$199.00

This product is currently sold out

FEATURES

  • 11 dBi gain across lower bands 698-960 MHz
  • 12 dBi gain across upper bands 1710-2700 MHz
  • Ruggedised construction for Australian conditions
  • Fully welded, powdercoat aluminium design
  • Stainless steel mounting clamp included
  • 30 cm tail with pre-terminated N Female connector
  • Supplied with 10 m of flexible PT240 LSHF cable
  • Ideal for high speed 3G and 4G LTE applications.

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.


Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal external antenna for Cel-Fi repeater systems.


The Blackhawk Wideband LPDA Antenna provides an ideal solution for 3G / 4G voice and data applications. With the rollout of new 3G and 4G frequencies such as 700 MHz 4GX and 2600 MHz 4G, traditional Yagi antennas just haven't been able to keep up. LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand. This one antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility.


A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptionally wideband performance by phasing a series of elements together, much like an ordinary yagi but with each successive element of a smaller (or larger) length. The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.



  • 10m LMR240 cable N/M to SMA/M included.



  • ELECTRICAL SPECIFICATIONS

    Frequency Range 698-960 MHz / 1710-2700 MHz
    Input Impedance 50 Ω
    Peak Gain 11 / 12 dBi
    VSWR ≤2.5:1 / ≤1.8:1
    Polarisation Vertical, linear
    Horizontal Beamwidth 55 / 42°
    Vertical Beamwidth 46 / 34°
    Maximum Input Power 50 W

    MECHANICAL SPECIFICATIONS

    Input Connector N Female
    Cable 30 cm cable tail
    Lightning Protection DC Ground
    Radiator Material Fully welded aluminium, black powder coat
    Mounting Stainless Steel, pole mount Ø30-50 mm
    Dimensions 1240 x 200 x 60 mm
    Packing Dimensions 1290 x 210 x 90 mm
    Weight 2.2 kg
    Rated Wind Velocity 192 km/h
    Operating Temperature -40 to +65°C
